How to adjust the strike (Entrance door)

■Latch receiver adjustment

1

Loosen the fixing screws (2 pieces) of latch receiver.
※Please do not remove every fixing screw because the strike cover will fall off and will not be possible to put back.

2

Adjust latch receiver position to minimize the rattle movement of the latch.

3

After the adjustment, fasten the fixing screws.

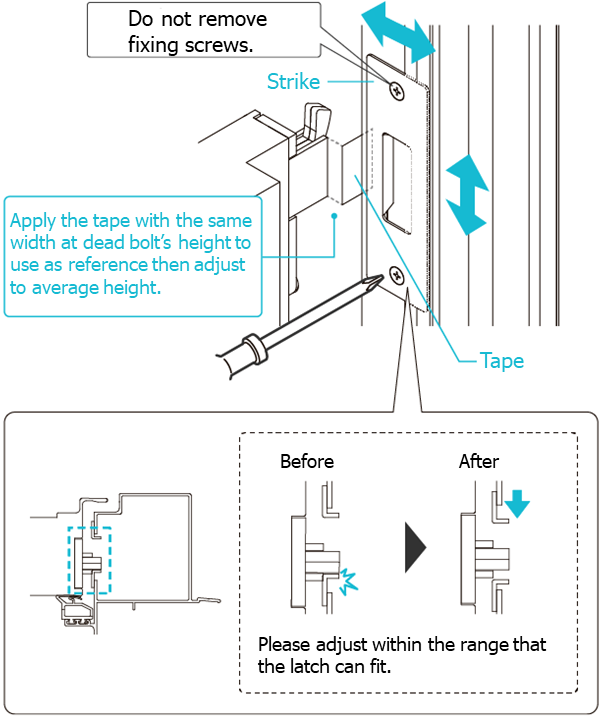

■Strike adjustment

1

Loosen the strike fixing screw. (2 pieces)
※Please do not remove every fixing screw because the strike cover will fall off and will not be possible to put back.

2

Adjust the strike position (in horizontal and vertical direction) so that it will not get into contact with the dead bolt.

3

After adjustment, fasten the fixing screws.
