Operation via keys(Secret switch)



※The same method(s) can also be applied to entrance sliding door.



■Unlock method

1

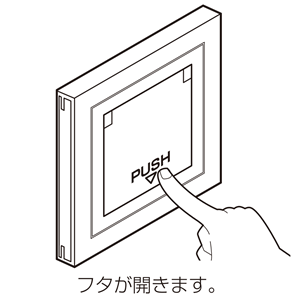

Please press on the PUSH switch lightly.


※If the cover stops mid way, please open it with your finger.
※Please refrain from pressing the cover with too much force. Doing so will damage the cover and unable to be opened.


2

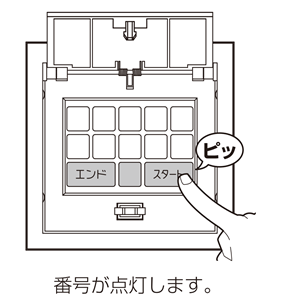

Press the start button.



3

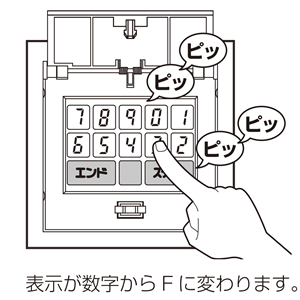

Enter password (4 digits)



4

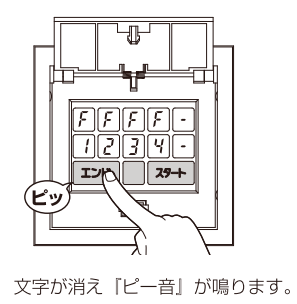

Press the end button.




※When wrong password is input, the user will not be able to input new password for 10 seconds.
※If the user does not press end button within 10 seconds after pressing start button, the operation will be timed out.


5

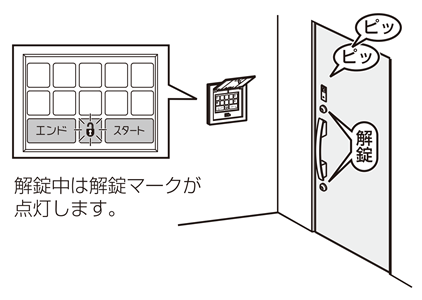

The door becomes unlocked.
After unlocking, the device operates the same as when unlocking by touch button.





■Lock method

1

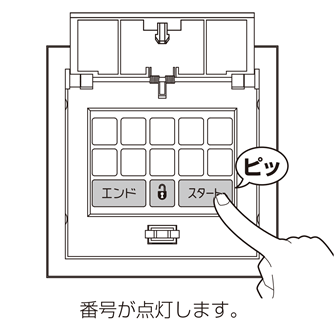

Press the start button.



2

Press the end button.





3

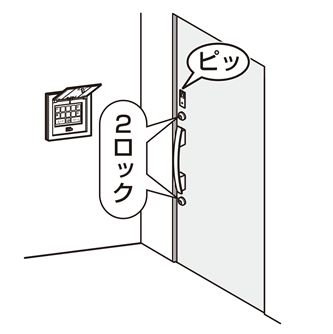

The door becomes locked.
