How to register a password for secret switch





■How to register

※Registration cannot be performed in alarm mode. Please turn off alarm mode before registration.

1

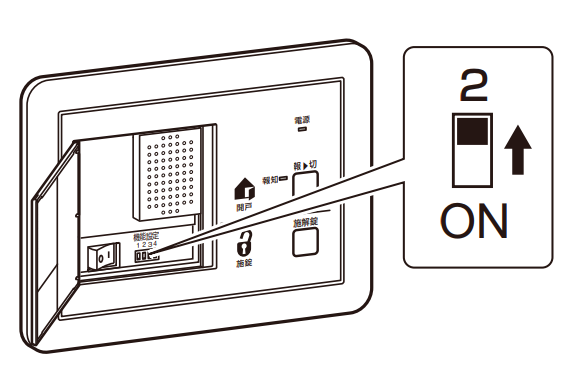

Turn ON the number 2 switch. (password registration mode)






While the registration mode is turned ON, the controller unit will make a 「Beep」 sound every 1 second.



2

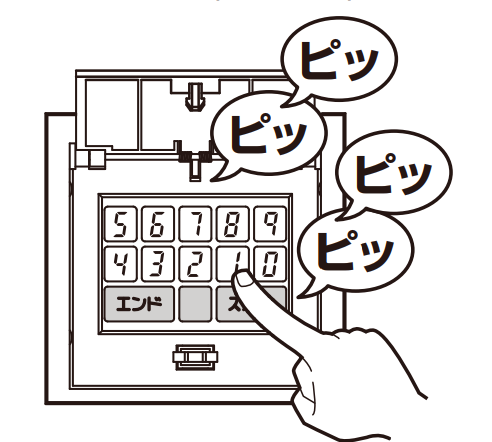

Input the desired password.

①Press the start button to enable the numpad. (numpad will light up)




②Input password. (4 digits)


③Press end button when there is a change in displayed numpad.


3

Re-input the same password.

①Press the start button to enable the numpad.


②Input the password. (4 digits)


③Press end button when there is a change in displayed numpad.


　The controller unit will make a 「Beep」 sound.



4

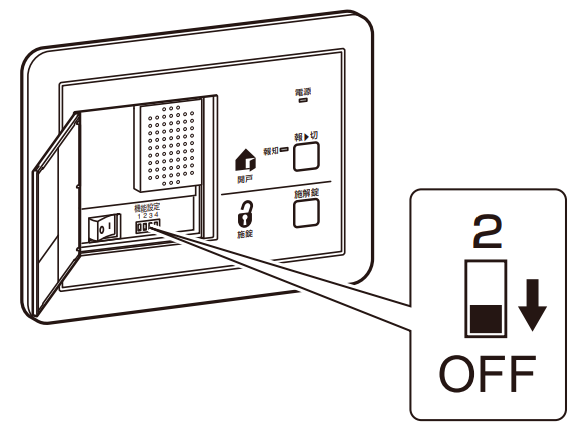

Turn OFF the number 2 switch. (password registration mode)








After turning OFF, the 「Beep」 sound will stop.
