How to change batteries for remote control





■How to change batteries

1

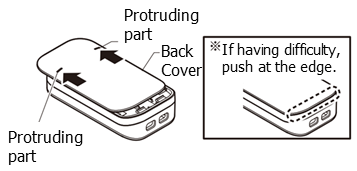

Press on the protruding parts at the back of remote control, then slide off and remove the back cover.




2

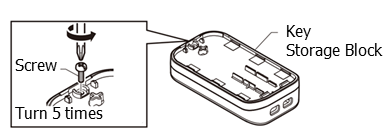

 Remove the screw of key storage block.




3

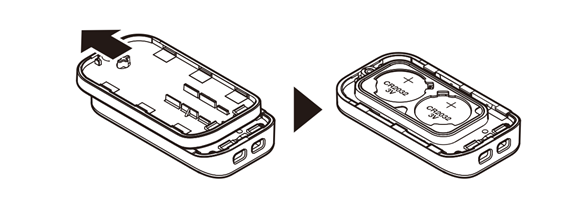

Slide off and remove the key storage block.


 4

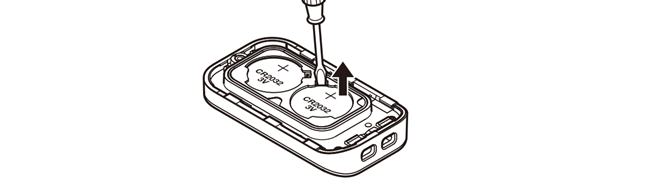

Remove the old batteries by using minus driver.




5

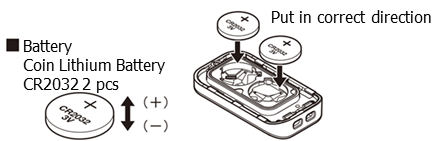

Insert the new batteries.

 ※Please change both batteries altogether. It is possible for the remote control to operate on 1 battery but that battery will not last long.

6

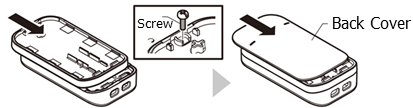

Put on the key storage block and fasten the screw, then put on the back cover.




■Request for when changing batteries

・Please make sure that inside of remote control and the batteries are without any water and stain. If there is any reaction on the water leaking label, the warranty will be null and void.
・Please do not touch the internal circuit board and rubber packing or else the waterproof performance will be decreased and lead to malfunction of the product.
・If inserting the batteries in the wrong direction, only one battery will be consumed which might lead to releasing of heat and malfunction.




■How to make remote control slimmer

It is possible to reduce thickness of remote control by removing the key storage block.
※The remote control will lose its ability to store standard key. However, it is recommended to keep the standard key ( ____.png) on your person at all times.

1

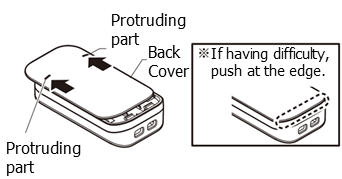

Press on the protruding parts at the back of remote control, then slide off and remove the back cover.


2

Remove the screw of key storage block.


3

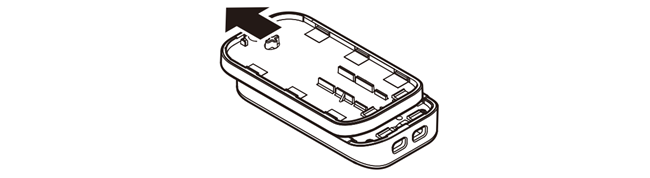

Slide off and remove the key storage block.


4

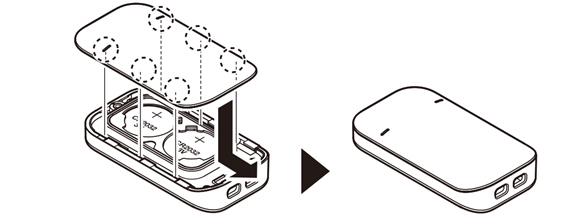

Put on the back cover while making sure the small hooks fit into the holes, then slide the back cover.______________________b-4.png

※Please store the removed key storage block and its screws.
When losing the screws, they can be replaced by 「Round head screw M2 x 5」.
