How to adjust strike (Entrance sliding door)

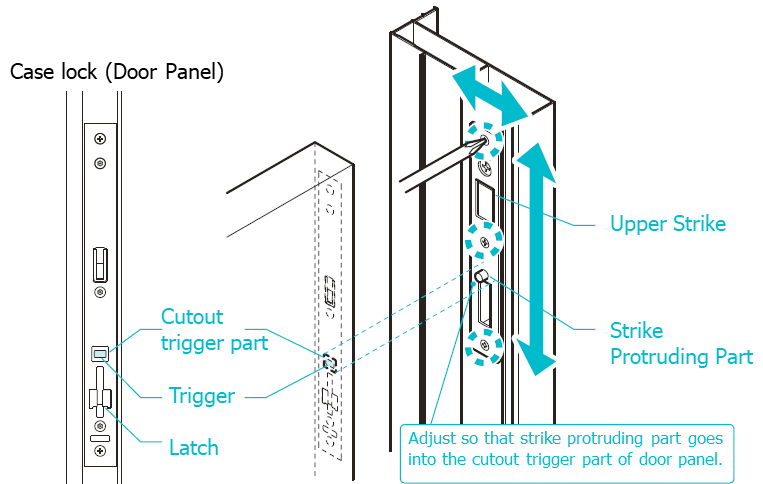

■Latch receiver adjustment

1

Loosen the fixing screw. (3 pieces)

2

Make an adjustment so that the protruding part of the strike goes into the cutout trigger part of the door panel.

3

Fasten the fixing screw. (3 pieces)




■Adjustment of lock receiver in up/down, in/out direction
(Upper/Lower strike)

1

Loosen the fixing screw. (Upper 3 pieces / Lower 2 pieces)

2

Adjust the strike so that it will not come into contact with the dead bolt.

3

Fasten the screws after finishing with the adjustment.

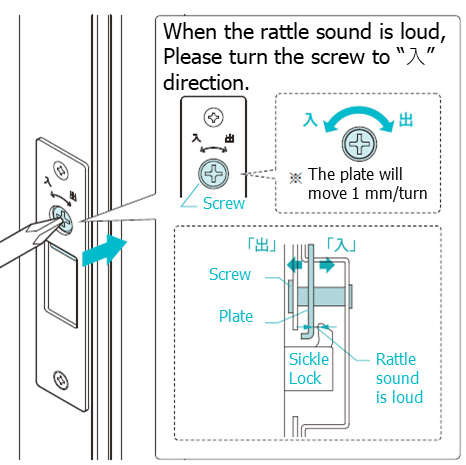

■Lock receiver adjustment for rattling movement
(Upper/Lower strike)

1

Turn the adjustment screw of upper, lower strike and make an adjustment to minimize the rattling movement.
